Metal Roofing Panels

Configurations of Metal Buildings

Color Chart

Metal Building Wall and Roof Panels

DDM Can Roll Sheets within 3 days or less at DDM Brenham or DDM Bastrop. DDM has the capability of making custom trim up to 20 feet, rake, corners, eave trim, gutters, and downsprouts.

Picture 1

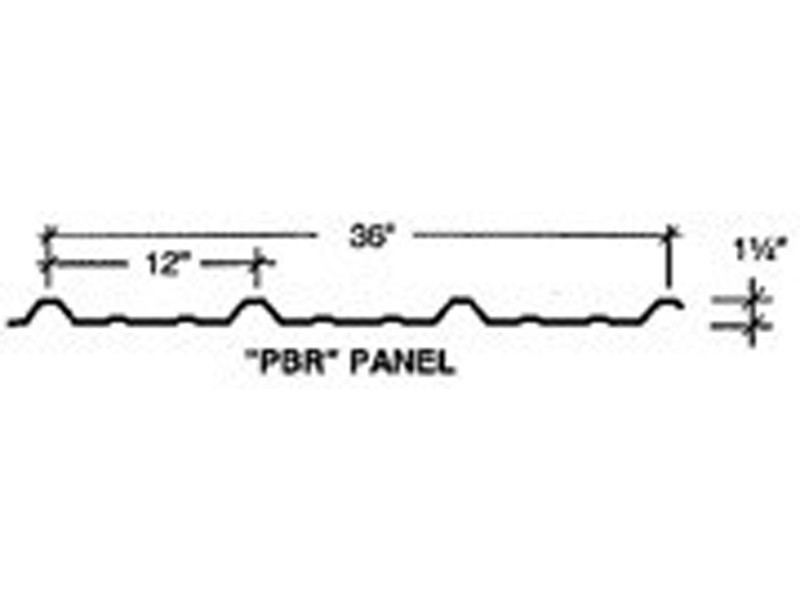

PBR (36"- COVERAGE) – Purlin Bearing Leg36" PBR

The PBR panel’s deep rib creates an even shadowed appearance. The Major ribs are 1-¼" in depth and are on 12" centers. The area between the major ribs is reinforced with two minor ribs for added strength and stability. This panel can be used for roof, walls, liner, and soffit panel.

Picture 2

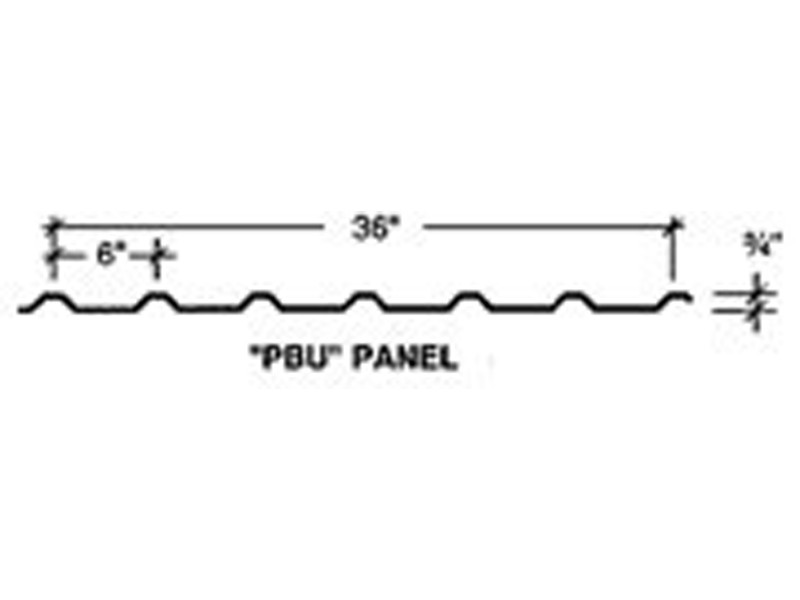

PBU (36" COVERAGE)36" PBU

The PBU panel has shallow ¾" ribs on 6" centers and is available for walls, liner, partitions and soffit panels.

Picture 3

DDM-SP1 (36" COVERAGE) – Purlin Bearing Leg

DDM-SP1 is a roof panel ideal for use for residential, light commercial, farm and ranch buildings. The panel requires no tape seal or lap screws with it’s unique design.

Picture 1

5V-Crimp (24” coverage)

5V-Crimp roof panel system offers a residential appearance. 5V panels are seen on a lot of old farm houses and old buildings.

Picture 2

CF-16 Panel (16” coverage)

Commercial grade concealed fastener panels deliver a smooth, clean look to any home or business. The lock-joint system conceals the fasteners and reduces the amount of screws in the exposed panel. It is excellent for new construction and applications where the existing roofing covering is removed to decking.

Color Chart

Roll-Up Doors

We sell a wide range of “user friendly” metal building components, small metal buildings, simple carports and utility buildings along with structural steel and trim. Our inventory also includes a big selection of accessories, such as screws, tape sealer, light transmitting panels, windows and doors, pipe and steel tubing. Nearly every tool needed for metal building erection can be found in our stores reasonably priced.

Series 650 Mini Storage Door

Self-Storage Door

Our Series 650 Mini Storage Door is designed and manufactured with durability, quick installation and ease of maintenance in mind. Standard features eliminate the need for options or upgrades. The Best Door, The Best Value.

Model 2000 / 2000I

Commercial Sheet Door

  • Utilizes 12” drum wheel
  • Maximum opening size of 12’ wide x 18’ high (216 sq.ft.)
  • Push-up, hand chain and electric operations

Model 2500 / 2500I

Heavy Duty Commercial Sheet Door

  • Utilizes 12” drum wheel
  • Maximum opening size of 18’ wide x 18’ high (324 sq.ft.)
  • Push-up, hand chain and electric operations

Model 3100 / 3100I

  • Designed to meet stringent building codes in coastal regions
  • Utilizes 12” drum wheel
  • Maximum opening size of 16’ wide x 18’ high (288 sq.ft.)
  • Push-up, hand chain and electric operations
  • PSF Ratings:
    • +35 PSF and -41 PSF for opening widths through 12’
    • +35 PSF and -38 PSF for opening widths over 12’ through 16’

Other Metal Building Styles
